Đặc tính kỹ thuật

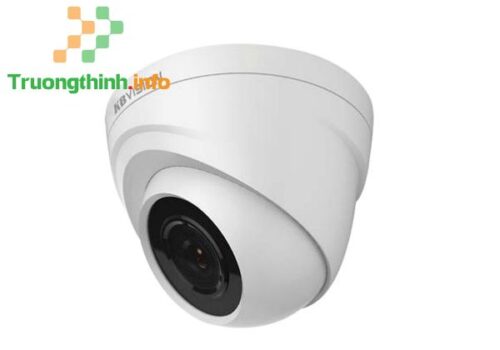

Model | KX-C2012C4 |
Camera | |
Image Sensor | 1/2.7 inch Sony NIR |
Effective Pixels | 1920(H)×1080(V), 2MP Panasonic |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
Minimum Illumination | 0.02Lux/F2.0, 30IRE, 0Lux IR on |
S/N Ratio | More than 65dB |
IR Distance | Up to 20m |
IR On/Off Control | Auto/ Manual |
Pan / Tilt / Rotation | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
Lens | |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 3.6mm |
Max Aperture | F2.0 |
Angle of View | H: 88° |
Video | |
Resolution | 1080P (1920×1080) |
Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
Video Output | 1-channel BNC high defintion video output / CVBS video output (Can switch) |
Day/Night | Auto (ICR) / Manual |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
Gain Control | AGC |
Noise Reduction | 2DNR |
Smart IR | Auto / Manual |
General | |
Power Supply | 12VDC ±25% |
Power Consumption | Max. 3.2W (12VDC, IR on) |
Casing | Plastic |
Dimensions | Φ85.4mm×69.1mm |
Weight | 0.11kg |
